Sintered Fiber Felt Filter

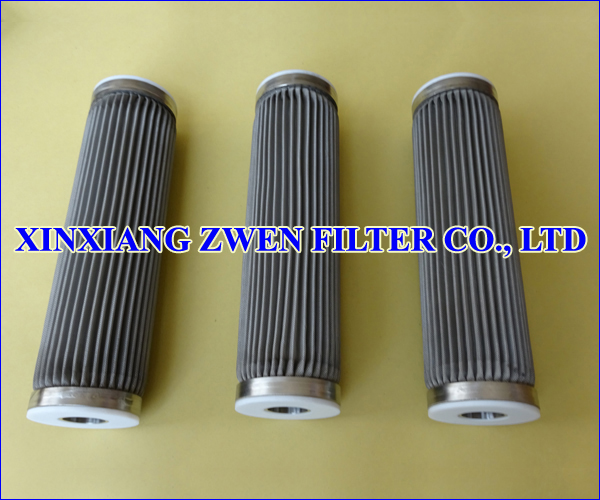

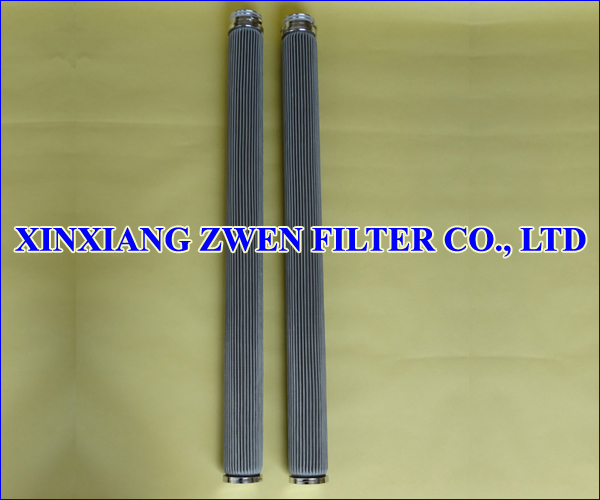

Pleated Sintered Fiber Felt Filter

Pleated Sintered Fiber Felt Filter

Pleated Sintered Fiber Felt Filter Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating Range: 1 Micron ~ 300 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Diameter: 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 150 mm, 300 mm, 400 mm or others

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization


Pleated Sintered Fiber Felt Filter Feature

1. Pleated sintered fiber felt filter has large filter area

2. Pleated sintered fiber felt filter is depth filtration

3. Pleated sintered fiber felt filter has high dirt holding capacity because of three dimensional fiber structures of zwen sintered fiber felt

4. Pleated sintered fiber felt filter has a very high filter efficiency because of different fiber layers density gradients of zwen sintered fiber felt

5. Stainless steel fiber will not shed in the filtration process

6. High porosity

7. High filter rating accuracy

8. High temperature resistance

9. High corrosion resistance

10. Pressure rise rate is slow in the filtration process

11. Pressure loss is low in the filtration process

12. High flow rate at low differential pressure

13. Washable and Cleanable

14. Reusable

15. Long service life



Application

Polyester filtration, polymer filtration, membrane filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry
