Sintered Fiber Felt Filter Cartridge

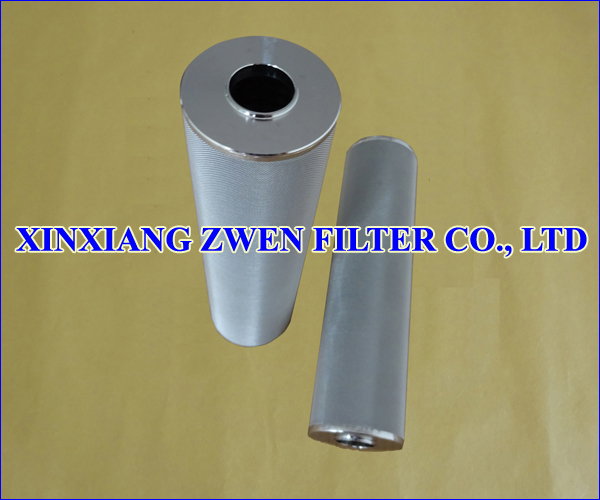

Cylindrical Sintered Fiber Felt Filter Cartridge

Cylindrical Sintered Fiber Felt Filter Cartridge

Cylindrical Sintered Fiber Felt Filter Cartridge Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating Range: 1 Micron ~ 300 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Diameter: 25 mm, 30 mm, 50 mm, 60 mm, 63.5 mm, 65 mm, 100 mm, 150 mm, 250 mm, 380 mm, 500 mm or others

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization


Cylindrical Sintered Fiber Felt Filter Cartridge Feature

1. Cylindrical sintered fiber felt filter cartridge is depth filtration

2. Cylindrical sintered fiber felt filter cartridge has high dirt holding capacity because of three dimensional fiber structures of zwen sintered fiber felt

3. Cylindrical sintered fiber felt filter cartridge has a very high filter efficiency because of different fiber layers density gradients of zwen sintered fiber felt

4. Stainless steel fiber will not shed in the filtration process

5. High porosity

6. High filter rating accuracy

7. High temperature resistance

8. High corrosion resistance

9. Pressure rise rate is slow in the filtration process

10. Pressure loss is low in the filtration process

11. High flow rate at low differential pressure

12. Washable and Cleanable

13. Reusable

14. Long service life


Application

Polyester filtration, polymer filtration, membrane filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry


About Us

XINXIANG ZWEN FILTER CO.,LTD  produces sintered fiber felt (ss sintered fiber felt, stainless steel sintered fiber felt, sintered fiber felt sheet), sintered metal fiber felt (ss sintered metal fiber felt, stainless steel sintered metal fiber felt, sintered metal fiber felt sheet), sintered fiber felt filter cartridge (cylindrical sintered fiber felt filter cartridge, pleated sintered fiber felt filter cartridge), sintered fiber felt filter element (cylindrical sintered fiber felt filter element, pleated sintered fiber felt filter element), sintered fiber filament media, and sintered fiber filter media.


XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.


XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.


XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.


XINXIANG ZWEN FILTER CO.,LTD Key Clients: Parker, GKN, SIEMENS, MAHLE.
