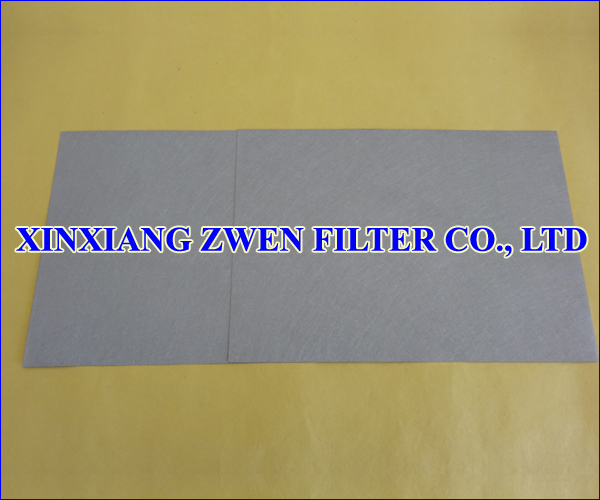

Metal Fiber Mat
Metal Fiber Mat

Metal Fiber Mat

Metal Fiber Mat Technical Parameter

Raw Material: SS 316L

Filter Rating Range: 1 Micron ~ 300 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Length:  1200 mm

Width:  1000 mm

Regular Size (Length*Width): 500 mm*500 mm,500 mm*1000 mm,1000 mm*1000 mm or others

Special Size (Length*Width): 1500 mm*900 mm

Thickness Range: 0.2 mm ~ 10 mm

Number of Layers:

1. One layer (Metal Fiber Mat)

2. Two layers (One Side Protective Wire Mesh/Metal Fiber Mat)

3. Two layers (One Side Protective Wire Mesh/Metal Fiber Mat/One Side Protective Wire Mesh)


Metal Fiber Mat Feature

1. Metal fiber mat is made from different diameters stainless steel fibers

2. Metal fiber mat is sintered in a high temperature vacuum furnace

3. Metal fiber mat is a good filter media for depth filtration

4. Metal fiber mat has high dirt holding capacity because of three dimensional fiber structures

5. Metal fiber mat has a very high filter efficiency because of differential fiber layers density gradients

6. Porosity

7. High filter rating accuracy

8. High temperature resistance

9. High corrosion resistance

10. Pressure rise rate is slow in the filtration process

11. Pressure loss is low in the filtration process

12. High flow rate at low differential pressure

13. Washable and Cleanable

14. Reusable

15. Long service life

16. Easy to be pleated

17. Easy to be welded, fabricated

18. Easy to be cutted into different shapes, such as circular, sheet



Application

Polyester filtration, polymer filtration, membrane filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry
