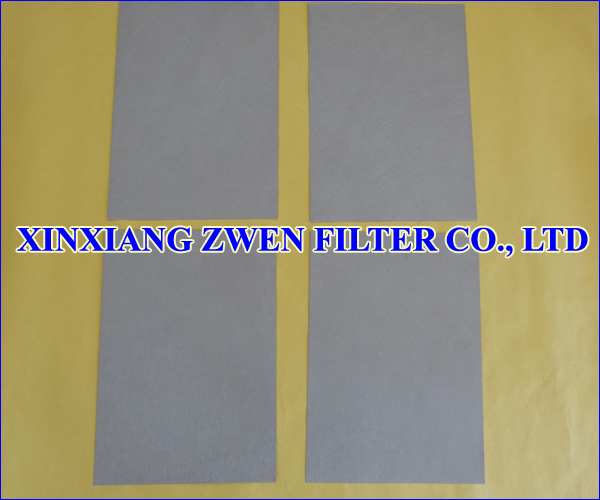

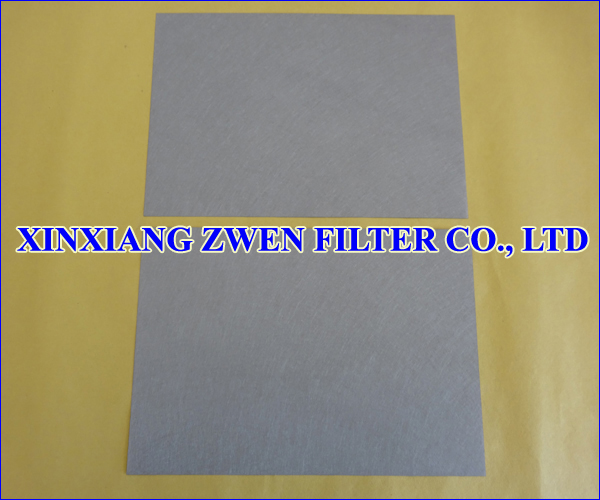

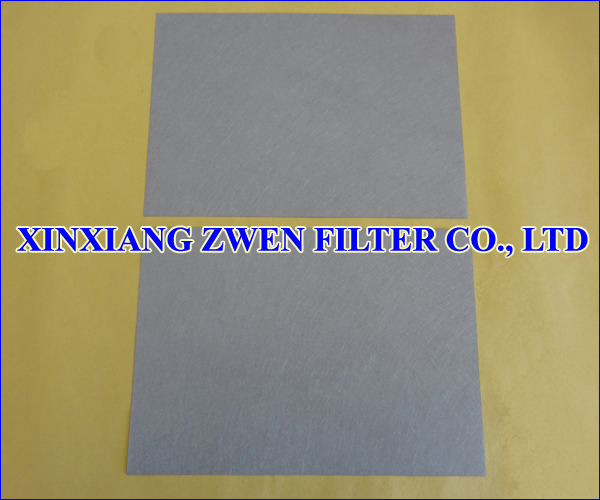

Stainless Steel Sintered Fiber Felt

Stainless Steel Sintered Fiber Felt


Stainless Steel Sintered Fiber Felt Technical Parameter

Raw Material: SS 316L

Filter Rating Range: 1 Micron ~ 300 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Length:  1500 mm

Width:  1200 mm

Regular Size (Length*Width): 500 mm*500 mm,500 mm*1000 mm,

                                               1000 mm*1000 mm or others

Thickness Range: 0.2 mm ~ 10 mm

Number of Layers:

1. One layer (Stainless Steel Sintered Fiber Felt)

2. Two layers (One Side Protective Wire Mesh/Stainless Steel Sintered Fiber Felt)

3. Three layers (One Side Protective Wire Mesh/Stainless Steel Sintered Fiber Felt/One Side Protective Wire Mesh)


Stainless Steel Sintered Fiber Felt Feature

1. Stainless steel sintered fiber felt is made from different diameters stainless steel fibers

2. Stainless steel sintered fiber felt is sintered in a high temperature vacuum furnace

3. Stainless steel sintered fiber felt is a good filter media for depth filtration

4. Stainless steel sintered fiber felt has high dirt holding capacity because of three dimensional fiber structures

5. Stainless steel sintered fiber felt has a very high filter efficiency because of different fiber layers density gradients

6. High porosity

7. High filter rating accuracy

8. High temperature resistance

9. High corrosion resistance

10. Pressure rise rate is slow in the filtration process

11. Pressure loss is low in the filtration process

12. High flow rate at low differential pressure

13. Washable and Cleanable

14. Reusable

15. Long service life

16. Easy to be pleated

17. Easy to be welded, fabricated

18. Easy to be cutted into different shapes, such as circular, sheet



Application

Polyester filtration, polymer filtration, membrane filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry
